400 Gallon Metal Livestock Water Trough
Price Starts At:
$4,320.00

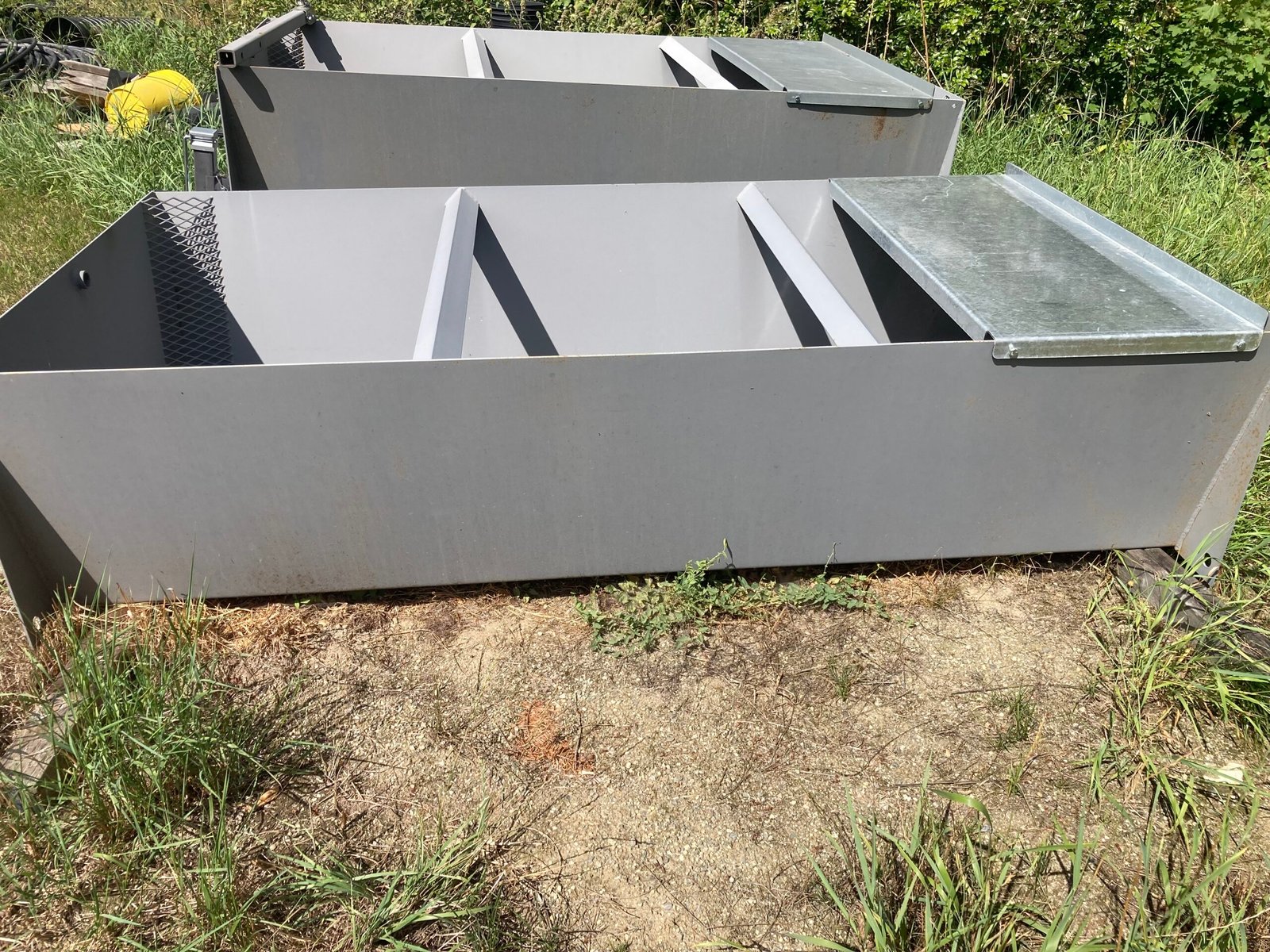

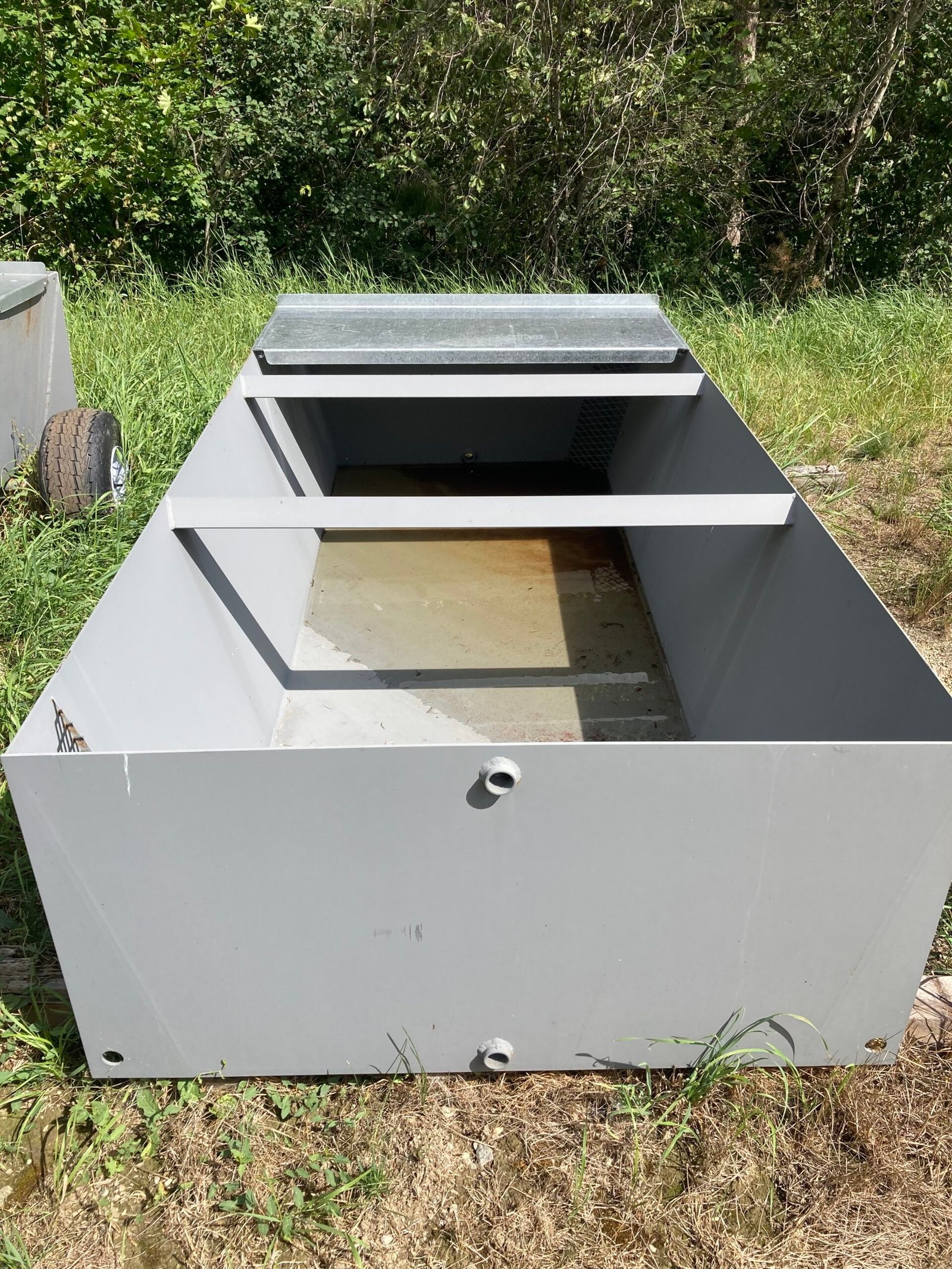

The 400 Gallon Metal Livestock Water Trough is a durable, field-proven solution for watering livestock in spring, summer, and fall grazing conditions. Ideal for Crown land range sites, this trough is designed for easy installation, winterization, and low maintenance, ensuring a reliable water source without additional infrastructure requirements.
The trough has a capacity of approximately 350 US gallons (with a 2-inch freeboard) and can water up to 6 cows at once, making it an efficient solution for grazing operations that need a robust, easy-to-manage watering system.
Constructed from 3/16 inch welded mild steel plate, this trough features flat ends and sloped sides, designed for strength and stability. Measuring approximately 8 feet long, 2 feet high, and 4 feet wide at the top, tapering to 3 feet at the base, the trough is both spacious and practical for livestock use.
To ensure protection against damage from livestock or vandals, both the inlet and outlet piping are positioned underneath the trough. The overflow drain is welded to the outflow end plate, ensuring proper drainage. The trough is reinforced with iron braces welded at both the width and length, adding extra strength to the top edges.
For wildlife safety, the trough includes a “critter escape” on two of the four inside corners. This feature provides small mammals with a way to escape if they fall into the trough, promoting eco-friendly management of the watering site.
FEATURES
- Made from welded 3/16 inch mild steel plate for strength and durability
- Approximately 350 US gallon capacity with 2-inch freeboard
- Watering capacity: up to 6 cows at once
- Dimensions: 8 feet long, 2 feet high, 4 feet wide at top (tapers to 3 feet)
- No exposed piping—inlet and outlet piping enters from underneath for added protection
- Overflow drain welded to the outflow end plate for proper drainage
- Iron braces welded for extra strength along both the width and length of the top edge
- Wildlife-friendly: “Critter escape” included on two of the four inside corners
- Equipped with plumbing/float cover and float for 1” pipe
- Simple to install, winterize, and maintain
- Ideal for Crown land range sites and seasonal grazing
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | 400 Gallon Metal Livestock Water Trough |
| Capacity | 350 US Gallons (1325 L) |
| Construction | Welded 3/16 inch mild steel plate |
| Dimensions | 8 feet long, 2 feet high, 4 feet wide at top (tapers to 3 feet) |
| Watering Capacity | Water up to 6 cows at once |
| Piping | Inlet and outlet enter from underneath the trough for added protection |
| Wildlife Safety | Critter escape included on two inside corners |
| Maintenance | Simple to install, winterize, and maintain |
| Weight | Approximately 500 lbs |
