Motion-Controlled 12V Solar Winter Water System with 24″ Bowl
Price Starts At:
$2,795.00
The Motion-Controlled 12V Solar Winter Water System with 24″ Bowl is the ultimate freeze-proof livestock watering solution for cold climates. Designed to operate without any artificial heat source, this innovative system ensures reliable winter watering for herds, regardless of size, when properly installed and maintained.
Powered by deep cycle batteries recharged through a single 160W solar panel setup, this 12V system efficiently operates the motion sensor and submersible pump. The heavy-duty plastic 24″ bowl is filled only when animals are present, preventing ice buildup. Once the animals leave, the bowl automatically drains, keeping the system completely freeze-proof even in sub-zero conditions.
Water is stored below the frost line within a vertical well casing and supplied either through a gravity-fed dugout/reservoir or a pressurized line. Designed for a static water level of 12 ft, this system can water up to 95 cow/calf pairs reliably throughout winter. Built for low maintenance and all-season performance, it’s the ideal off-grid system for ranchers seeking efficiency, dependability, and freeze protection.
FEATURES
- 100% freeze-proof winter watering system – no artificial heat required
- Solar-powered 12V operation with deep cycle battery backup
- Motion-activated pump fills bowl only when animals are present
- Automatic drainback prevents ice buildup after use
- Heavy-duty 24″ plastic bowl serves 2–3 animals at once
- Waters up to 95 cow/calf pairs (static water level 12 ft)
- Can be gravity-fed or connected to a pressurized line
- Durable, low-maintenance design for long-term reliability
SYSTEM SPECIFICATIONS
| Specification | Details |
|---|---|
| System Model | Motion-Controlled 12V Solar Winter Water System |
| System Type | Motion-Activated Solar-Powered Winter Watering System |
| Operating Voltage | 12 VDC |
| Power Source | Solar panel(s) charging deep cycle batteries |
| Bowl Size | 24″ diameter (serves 2–3 animals at a time) |
| Max Static Water Level | 12 ft (3.6 m) |
| Watering Capacity | Up to 95 cow/calf pairs |
| Freeze Protection | Automatic drainback design – no heat required |
| Warranty | 2 Years (components) |

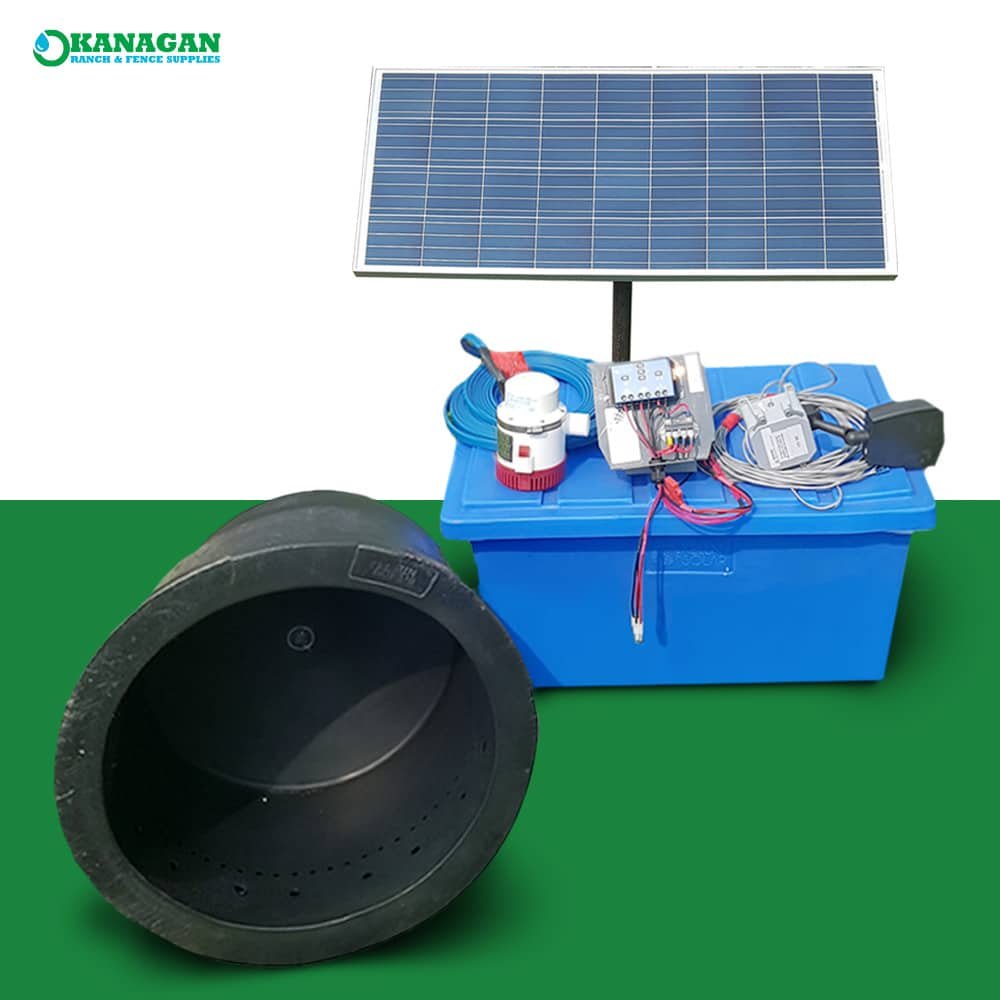

INCLUDED SYSTEM COMPONENTS
- 1 Heavy-duty plastic 24″ bowl (2–3 animals)
- 1 Submersible pump with 30 ft of wire
- 1 Solar panel (160W)
- Solar panel stand
- 1 Regulator with low voltage disconnect (prewired plug-in ready)
- 1 DC motion sensor assembly
- 1 Battery box (fits up to four batteries)
- 1 Poly hose
- 1 Drainback filter assembly
