Motion Eye 12V Winter Water System with 36″ Bowl

Price Starts At:

$3,195.00

Category:

The Motion Eye 12V Winter Water System with 36″ Bowl is the ultimate freeze-proof livestock watering solution designed for harsh winter conditions. This innovative motion-activated solar water system ensures your animals have access to fresh water all winter long, without the need for an artificial heat source.

Built for efficiency and reliability, the system operates only when animals are present. A submersible pump fills the heavy-duty 36″ plastic bowl mounted on a vertical well casing. Once the animals leave, the bowl automatically drains dry to prevent freeze-up. The remaining water stays safely below the frost line, protected from freezing temperatures.

Water can be supplied by gravity feed from a dugout or reservoir or through a pressurized line. Designed for rugged winter use and simple maintenance, the Motion Eye Winter Water System offers dependable, energy-free performance for year-round livestock watering.



FEATURES



  • 12V motion-controlled solar winter watering system
  • 100% freeze-proof when properly installed and maintained
  • Operates only when animals are present – energy efficient
  • Bowl automatically drains dry after use to prevent freezing
  • No artificial heat source required
  • Water remains below frost line for freeze protection
  • Durable 36″ heavy-duty plastic bowl
  • Suitable for dugout, reservoir, or pressurized line supply
  • Reliable off-grid winter watering solution



SYSTEM SPECIFICATIONS



Specification Details
System Model Motion Eye 12V Winter Water System
Operating Voltage 12 VDC
Bowl Size 36″ Heavy-Duty Plastic Bowl
Pump Type Submersible Solar Pump
Activation DC Motion Sensor Controlled
Freeze Protection Automatic Drainback to Below Frost Line
Power Source Dual 160W Solar Modules
Water Supply Options Gravity Feed or Pressurized Line
Warranty 2 Years

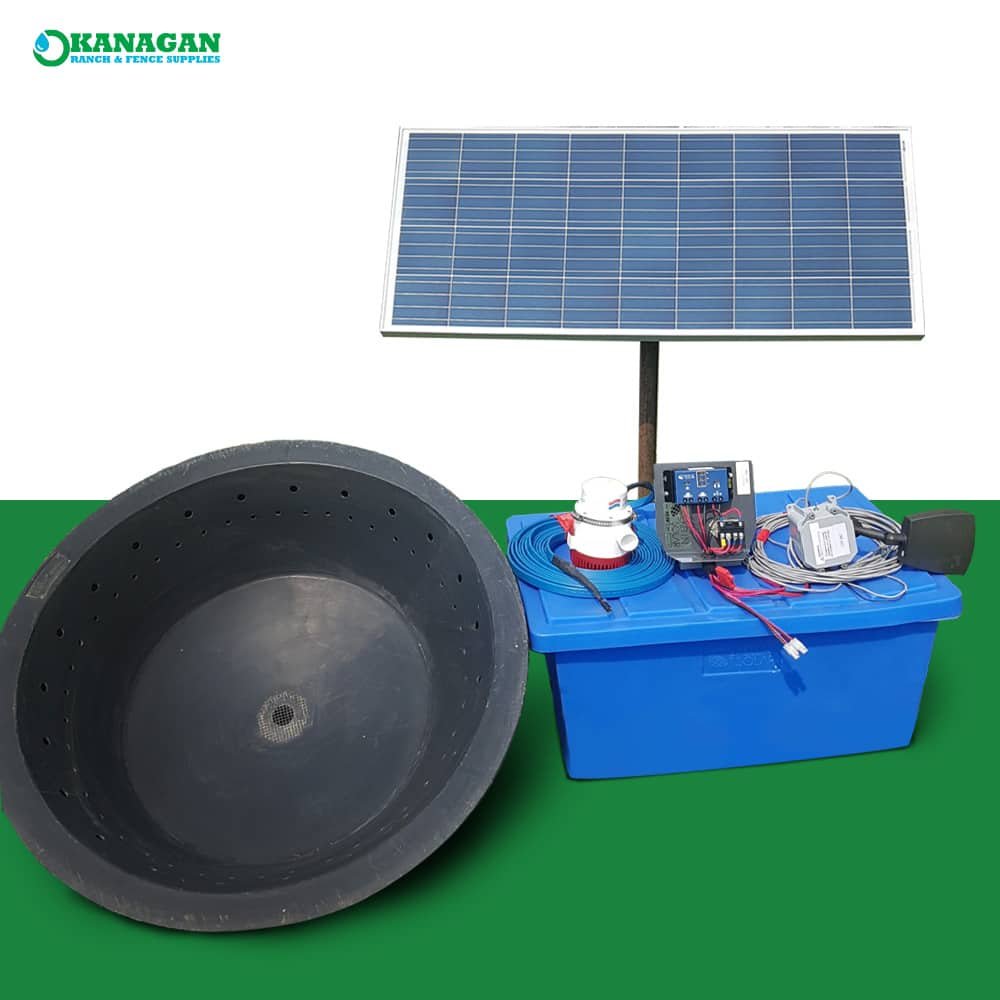

INCLUDED SYSTEM COMPONENTS

  • 36″ HD plastic water bowl
  • Submersible pump with 30 ft of wire
  • Dual 160W solar panels
  • Solar panel stand(s) – single, double, or triple as required
  • Regulator with low voltage disconnect and prewired plug-in connections
  • DC motion sensor assembly
  • Battery box
  • Poly hose
  • Drainback filter assembly
